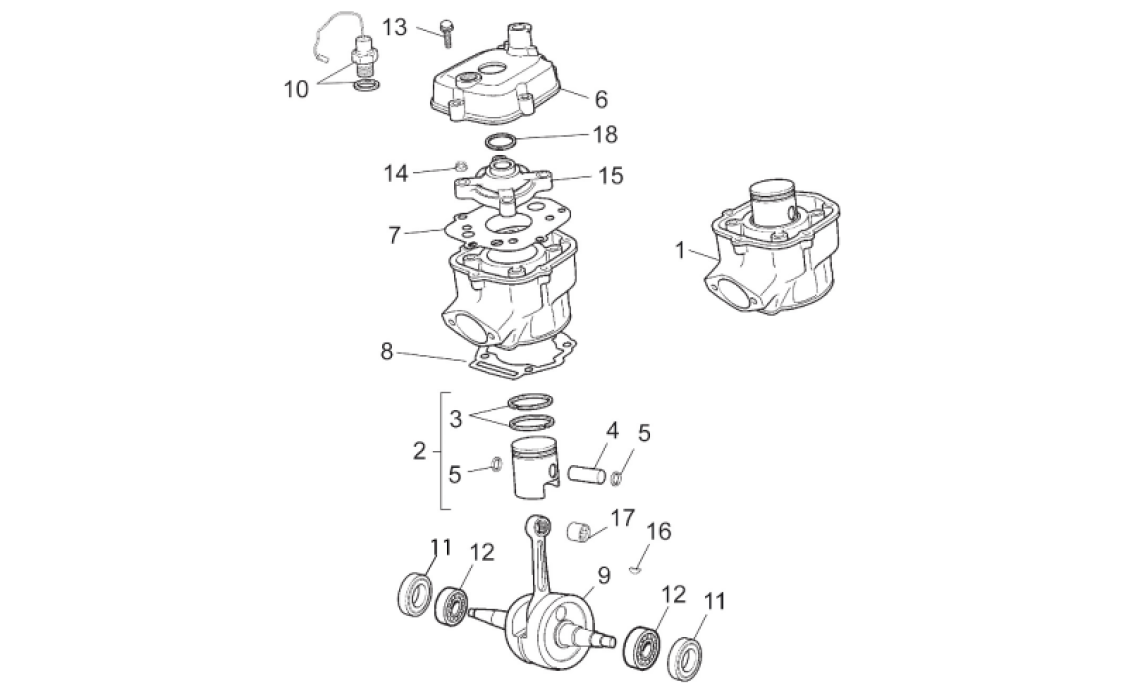

| Position | Part | Part Number | Price inc.VAT | PACK QTY | Your Order | Add To Cart |
|---|---|---|---|---|---|---|
| 1 | Cylinder with pistonYear: 2006 [6], 2008 [8] | 8475085 | 1 | |||
| 1 | Cylinder with piston FEYear: 2009 [9] | 8772085 | 1 | |||
| 2 | Nut | 436947 | £0.90 | 1 | Add | |
| 2 | PISTON-PIN GROUPYear: 2009 [9] | 8770700001 | £65.47 | 1 | Add | |
| 2 | PISTON-PIN GROUPYear: 2009 [9] | 8770700002 | £65.47 | 1 | Add | |
| 2 | PISTON-PIN GROUPYear: 2009 [9] | 8770700003 | £65.47 | 1 | Add | |
| 2 | PISTON-PIN GROUPYear: 2009 [9] | 8770700004 | £65.47 | 1 | Add | |
| 2 | Piston-wrist pin assy.Year: 2006 [6], 2008 [8] | 8472625004 | £115.12 | 1 | Add | |
| 2 | Piston-wrist pin assy.Year: 2006 [6], 2008 [8] | 8472625003 | £115.12 | 1 | Add | |
| 2 | Piston-wrist pin assy.Year: 2006 [6], 2008 [8] | 8472625001 | £115.12 | 1 | Add | |
| 2 | Piston-wrist pin assy.Year: 2006 [6], 2008 [8] | 8472625002 | £115.12 | 1 | Add | |
| 3 | Piston ringYear: 2006 [6], 2008 [8] | 847006 | £16.62 | 1 | Add | |
| 3 | PISTON STOP PINYear: 2009 [9] | 877072 | £20.69 | 1 | Add | |
| 4 | PISTON PIN | 847012 | £26.00 | 1 | Add | |
| 5 | wristpin retaining clip | 847178 | £1.56 | 1 | Add | |
| 6 | Head cover | CM151902 | 1 | |||
| 7 | HEAD CYLINDER GASKETYear: 2009 [9] | 871725 | £13.67 | 1 | Add | |
| 7 | HEAD CYLINDER GASKETYear: 2006 [6], 2008 [8] | 871725 | £13.67 | 1 | Add | |
| 8 | CRANKCAS/CYLINDER PACKINGYear: 2006 [6], 2008 [8] | 871643 | £3.65 | 1 | Add | |
| 8 | Gasket V/AL 0,5Year: 2009 [9] | CM159502 | £1.54 | 1 | Add | |
| 8 | Gasket V/FE 0,3Year: 2009 [9] | CM159501 | £1.25 | 1 | Add | |
| 8 | Gasket V/FE 0,7Year: 2009 [9] | CM159503 | £3.23 | 1 | Add | |
| 9 | Drive shaft | 874224 | £371.41 | 1 | Add | |
| 10 | Temp. Sensor | 847010 | 1 | |||
| 11 | OIL SEAL | 847020 | £13.34 | 1 | Add | |
| 12 | BEARING | 847172 Replaced by 8471726 | £26.05 | 1 | Add | |
| 13 | FLANGED HEX HEAD SCREWYear: 2009 [9] | 414837 | £0.38 | 1 | Add | |
| 13 | Screw 6X25Year: 2006 [6], 2008 [8] | CM149804 | 5 | |||
| 15 | Cylinder head | 847008 | 1 | |||
| 16 | Woodruff key | 847215 | £3.23 | 1 | Add |
