Sport City Cube 125-200 carb E3 2008-2010 ~ Variator assembly

Sport City Cube 125-200 carb E3 2008-2010 ~ Variator assembly
If you need advice on choosing Aprilia parts please contact Aprilia genuine parts via email


sales@apriliagenuineparts.co.uk

Mon-Fri 9am-5pm

If you are unsure of the correct body panel or decal set please email for assistance as returns are not accepted on these items by Aprilia, we @Apriliagenuineparts do accept returns however please note we charge a 20% restocking fee on ALL RETURNS, If there is any problems/damage you must ensure that we are notified upon delivery of goods. Any faults/defects or unwanted goods must be reported within 7 days of purchase. All returns must be in 'as new' condition, in original packaging, undamaged and at the cost of the buyer. ELECTRICAL ITEMS, DECALS AND BODY PANELS CAN NOT BE RETURNED FOR CREDIT. PLEASE CHECK WITH OUR SALES STAFF IF UNSURE

.

Please note that the Aprilia factory operate skeleton staff during the weeks of August due to the Italian summer shut down so there could be a delay in receiving your parts, we usually aim to dispatch your goods within 5-10 working days when available, please bear with us during this time.

Please note all prices, pack quantities and part numbers are subject to change without prior notice, Aprilia reserve the right to change price, pack quantities or part number - unfortunately we are unable to keep our website up-to-date with these changes from Aprilia however we do try our up most to keep in line with the current Aprilia catalogue

Back To Sport City Cube 125-200 carb E3 2008-2010
bike me - aprilia

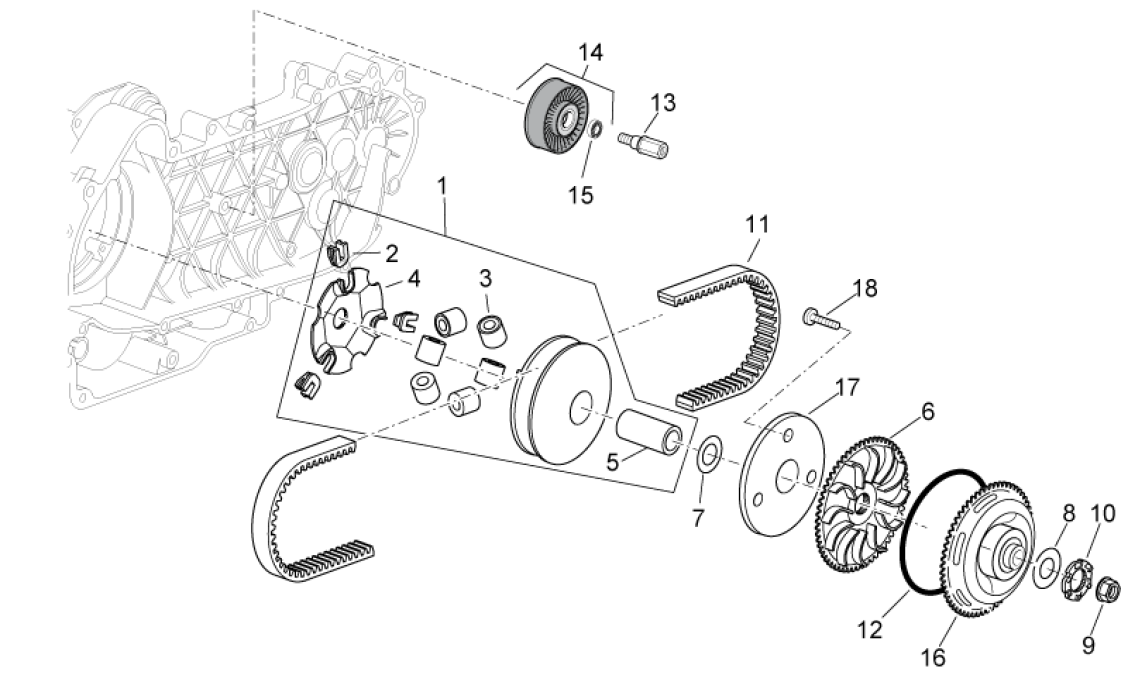

PositionPart NoBox QtyDescriptionPrice
1CM1444031Half-pulley assy., driving Technical Specifications: Versione 125 cc [125] 53.15
1CM1444041Half-pulley assy., driving Technical Specifications: Versione 200 cc [200] 55.63
243485553Sliding blockNo Longer Available
3CM10380451Pin roller weight g.7,4 Technical Specifications: Versione 125 cc [125] 10.70
348571351Pin roller-set Technical Specifications: Versione 200 cc [200] No Longer Available
44857101Ramp plate7.65
54838891Spacer12.74
68347741Fixed pulley Technical Specifications: Versione 200 cc [200] 23.07
68456071Semipuleggia motrice fissa completa Technical Specifications: Versione 125 cc [125] 39.55
74348851Plain washer0.67
84333911Plain washer Technical Specifications: Versione 125 cc [125] 1.57
94367831NutNo Longer Available
108273861Bush Technical Specifications: Versione 125 cc [125] 3.87
118420091V-belt Technical Specifications: Versione 125 cc [125] 45.31
118420111V-belt Technical Specifications: Versione 200 cc [200] 70.03
128325081O-ring Technical Specifications: Versione 200 cc [200] 0.82
138293261Special screw2.13
148339891Toothed pulley24.68
1582577R1Bearing8.94
168408151Torque limiter Technical Specifications: Versione 200 cc [200] 93.16
178327151Plate Technical Specifications: Versione 125 cc [125] 10.01
180159473Screw Technical Specifications: Versione 125 cc [125] Call Us
