RSV 1000 2004-2008 ~ Rear master cylinder

RSV 1000 2004-2008 ~ Rear master cylinder
If you need advice on choosing Aprilia parts please contact Aprilia genuine parts via email


sales@apriliagenuineparts.co.uk

Mon-Fri 9am-5pm

Factory Moto is the best way to clean your Aprilia motorcycle & scooter.
Back To RSV 1000 2004-2008
bike me - aprilia

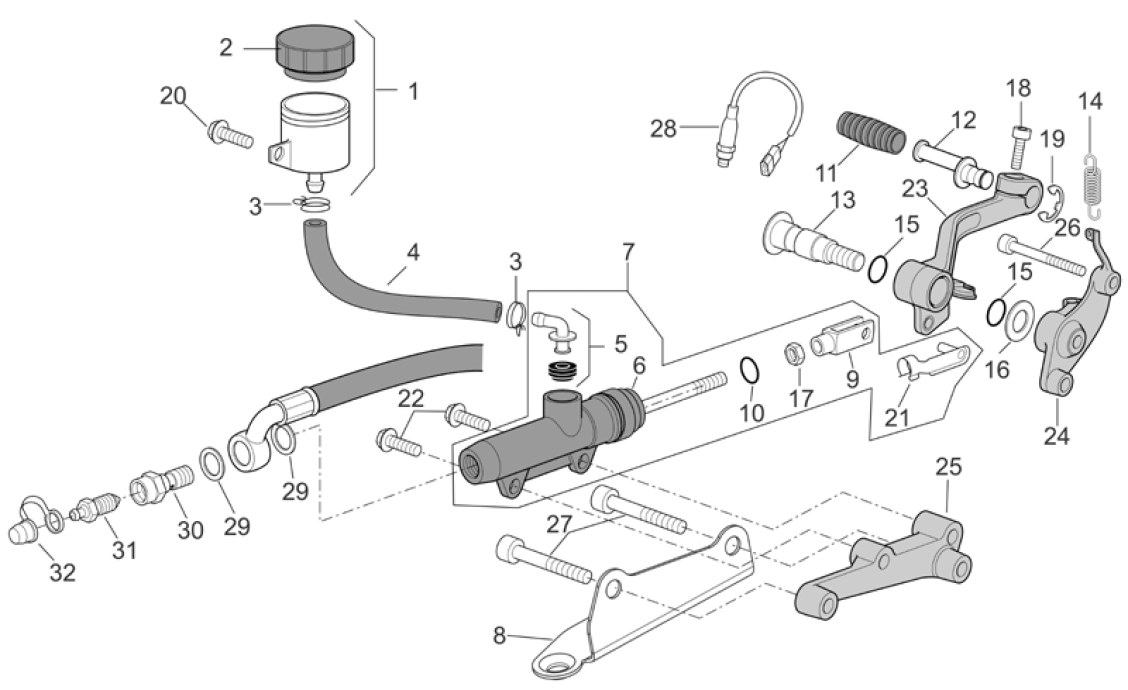

PositionPart NoBox QtyDescriptionPrice
1AP81338731Brake oil tank complete13.66
2AP81135531Tank cap12.74
3AP81015952Hose clamp D10,1*2.15
4AP81441511Rubber pipeCall Us
5AP81338721Rear brake pump union10.64
6AP81132881Rubber bellows20.21
7AP81338751Rear master cylinder93.23
8AP81339021Brake master cyl.protection7.49
9AP81019681Fork6.83
10AP81201781O-ring OR1121.59
11AP81209121Lever rubber2.19
12AP81212211Brake lever pin8.19
13AP81212231Rear brake lever pin4.71
14AP81219271Rear brake lever spring5.63
15AP81440072O-ring 11,11x1,780.98
16AP81500201Washer 10,5x21x2*0.66
17AP81500261Nut0.32
18AP81500442Hex socket screw Technical Specifications: Factory \"R\" RSV Version [FAC], RSV Mille \"R\" Version [R] 0.61
18AP81524261Screw M6x20 Technical Specifications: \"Nera\" Dream RSV Version [DRE] 4.26
19AP81504621Circlip d90.49
20AP81522732Screw w/ flange1.35
21AP82013011Gear selector fork clips2.15
22AP81522795Screw w/ flange M6x203.24
23AP81467871Rear brake lever40.49
24AP81344151Brake lever support34.06
25AP81343841Rear master cyl.support29.44
26AP81504031Hex socket screw0.69
27AP81502771Hex socket screw0.69
28AP81129961Brake light switch25.81
29AP81219154Gasket3.38
30AP81137621Bored screw1.86
31AP81137611Air bleed valve13.72
32AP81132301Bleed valve cap24.80
