Pegaso Strada-Trail 650 IE 2005-2009 ~ Swing arm

Pegaso Strada-Trail 650 IE 2005-2009 ~ Swing arm
If you need advice on choosing Aprilia parts please contact Aprilia genuine parts via email

Mon-Fri 9am-5pm

If you are unsure of the correct body panel or decal set please email for assistance as returns are not accepted on these items by Aprilia, we @Apriliagenuineparts do accept returns however please note we charge a 20% restocking fee on ALL RETURNS, If there is any problems/damage you must ensure that we are notified upon delivery of goods. Any faults/defects or unwanted goods must be reported within 7 days of purchase. All returns must be in 'as new' condition, in original packaging, undamaged and at the cost of the buyer. ELECTRICAL ITEMS, DECALS AND BODY PANELS CAN NOT BE RETURNED FOR CREDIT. PLEASE CHECK WITH OUR SALES STAFF IF UNSURE


Please note that the Aprilia factory operate skeleton staff during the weeks of August due to the Italian summer shut down so there could be a delay in receiving your parts, we usually aim to dispatch your goods within 5-10 working days when available, please bear with us during this time.

Please note all prices, pack quantities and part numbers are subject to change without prior notice, Aprilia reserve the right to change price, pack quantities or part number - unfortunately we are unable to keep our website up-to-date with these changes from Aprilia however we do try our up most to keep in line with the current Aprilia catalogue

Back To Pegaso Strada-Trail 650 IE 2005-2009
bike me - aprilia

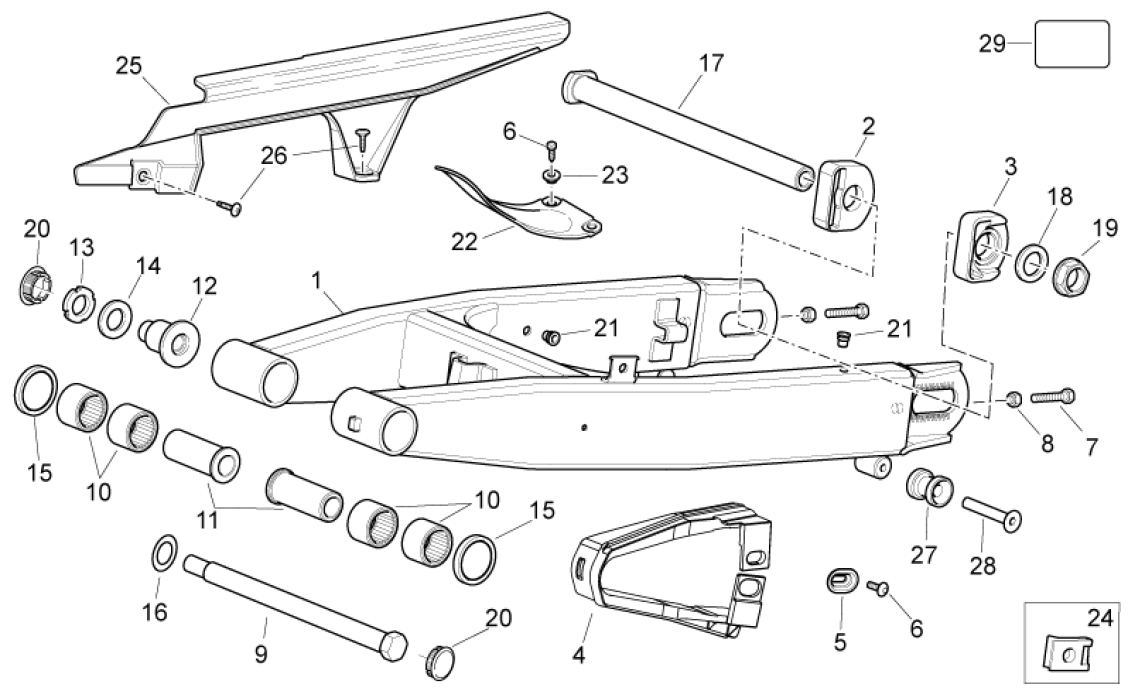

PositionPart NoBox QtyDescriptionPrice
1AP81450781Swing arm, Technical Specifications: Municipal Police [PM] No Longer Available
1AP81450781Swing arm, Technical Specifications: Factory Version [Fac] No Longer Available
1AP81450781Swing arm, Year: 2007 [7], 2008 [8], 2009 [9] - Technical Specifications: Strada Version [SX] No Longer Available
1AP81469281Swing arm, Year: 2005 [5], 2006 [6] - Technical Specifications: Strada Version [SX] 478.02
1AP81469281Swing arm, Technical Specifications: Enduro Trail Version [RX] 478.02
2AP81447021RH chain tensioner8.89
3AP81447031LH chain tensioner8.89
4AP81446871Chain guide plate15.54
5AP82340201Cup for shoe0.76
7AP81523052Chain tens.adjuster screw6.39
8AP81522621Low nutNo Longer Available
9AP81610381Rear swing arm pin D1617.60
10AP81100704Needle bearing 25x32x2495.62
11AP81610412Rear sw.arm piv.bush26.29
12AP81610281Adjustment bush12.29
13AP81502991Ring nut M17x11.77
14AP81520631Washer 17x30x3*0.67
16AP81504451Crinkle washerNo Longer Available
17AP81610401Rear wheel spindle61.11
18AP81256871Wheel pin washer0.27
19AP81257631Rear wheel spindle nut4.25
20AP81051392Black plugNo Longer Available
21AP82017552Threaded rivet4.46
22AP81790171Shock absorber cover3.82
23AP81210752T bush *1.37
25AP81788101Upper chain guard20.06
26AP81523024Screw w/ flange4.60
27AP81218902Rear stand bush2.72
28AP81504682Screw M6x400.47
29AP81665991Chain/Tyres decal Technical Specifications: Enduro Trail Version [RX] No Longer Available
29AP81666801Chain decal Technical Specifications: Strada Version [SX] 4.53
