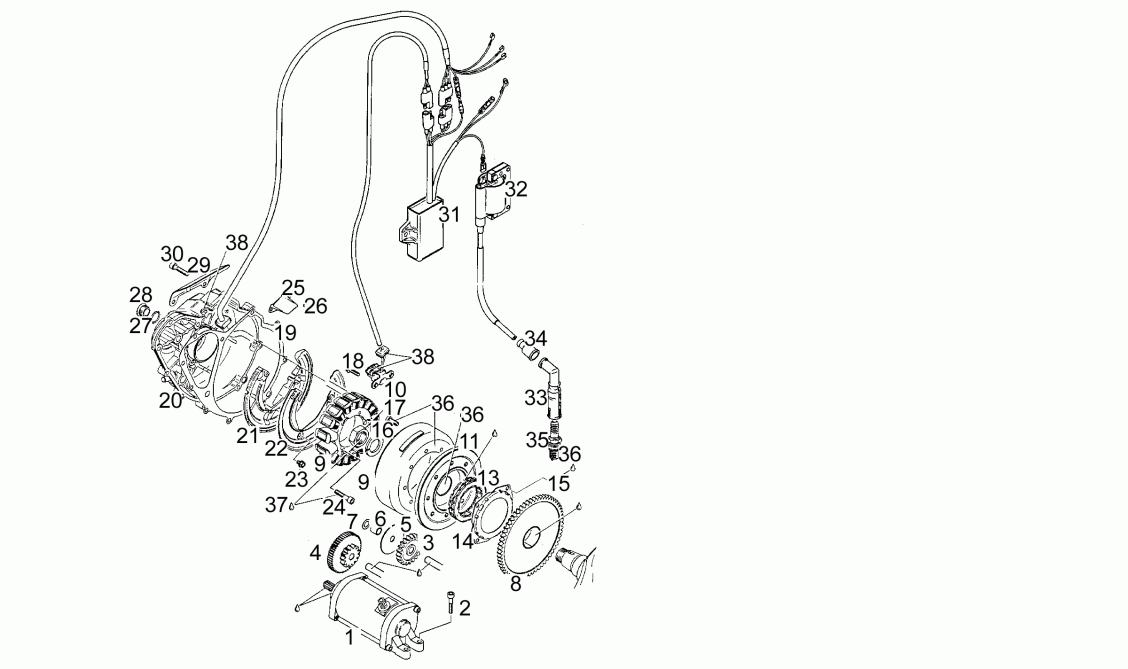

PEGASO 650 1992-1996 ~ Cdi magneto assy T

If you need advice on choosing Aprilia parts please contact Aprilia genuine parts via email

Mon-Fri 9am-5pm

Factory Moto is the best way to clean your Aprilia motorcycle & scooter.

Back To PEGASO 650 1992-1996

Position	Part No	Box Qty	Description	Price
1	AP0294351	1	Starter motor cpl.	719.38
2	AP0840882	2	Hex socket screw	1.71
3	AP0234655	1	Idle gear Z=24	112.41
4	AP0234756	1	Idle gear Z=11/52	234.68
5	AP0627080	1	Thrust washer 11/58/1,5	5.36
6	AP0247785	1	Spacer 10/13/10,7	6.51
7	AP0827590	1	Thrust washer 10,1/17/1	5.70
8	AP0634317	1	Sprag clutch gear	244.78
9	AP0295170	1	Ignition unit 12V-280W	1,298.92
10	AP0265155	1	Ext. pick-up	213.72
11	AP0264577	1	Flywheel magneto hub	380.37
12	AP0241231	8	Hex socket screw	36.03
13	AP0958857	1	Sprag clutch	376.53
14	AP0259192	1	Sprag clutch housing	46.90
15	AP0242031	1	Low nut	0.50
16	AP0945759	1	Break washer a22 ANTICORROSIONE -	3.16
17	AP0842230	1	Nut m22x1,5	8.60
18	AP0941925	2	Special TE screw	1.88
19	AP0250920	1	Gasket	20.21
20	AP0210388	1	Ignition cover	431.06
21	AP0260305	1	Acoustic insulation panel	49.58
22	AP0275035	1	Panel support	28.42
23	AP0841680	1	Special TE screw	0.82
24	AP0241810	6	Hex socket screw	4.55
25	AP0251880	1	Wiring internal guard plate	9.11
26	AP0240195	2	Special cap screw M4x8	0.86
27	AP0250890	3	O-ring 3771	10.28
28	AP0241801	2	Plastic plug M18x1,5	15.25
29	AP0251990	1	Wiring external guard plate	16.28
30	AP0840882	2	Hex socket screw	1.71
31	AP0265365	1	CDI unit assy	633.87
32	AP0265355	1	HT coil	184.87
33	AP0264861	1	Sparkplug cap 5 K-OHM RESISTORE -	69.33
34	AP0260700	1	Rubber spacer	7.16
35	AP0297542	1	Spark plug DR8EA NGK DR8EA -	3.86
36	AP0899788	1	Loctite (green) 648 5gr. PASTA FISSAGGIO VITI	5.83
37	AP0899785	1	Loctite (violet) 221 10cc. PASTA FISSAGGIO VITI	5.89
38	AP0297900	1	Sealing compound 310 ml	21.54
