Leonardo 125-150 1996-1998 ~ Cylinder head

Leonardo 125-150 1996-1998 ~ Cylinder head
If you need advice on choosing Aprilia parts please contact Aprilia genuine parts via email


Mon-Fri 9am-5pm

If you are unsure of the correct body panel or decal set please email for assistance as returns are not accepted on these items by Aprilia, we @Apriliagenuineparts do accept returns however please note we charge a 20% restocking fee on ALL RETURNS, If there is any problems/damage you must ensure that we are notified upon delivery of goods. Any faults/defects or unwanted goods must be reported within 7 days of purchase. All returns must be in 'as new' condition, in original packaging, undamaged and at the cost of the buyer. ELECTRICAL ITEMS, DECALS AND BODY PANELS CAN NOT BE RETURNED FOR CREDIT. PLEASE CHECK WITH OUR SALES STAFF IF UNSURE


Please note that the Aprilia factory operate skeleton staff during the weeks of August due to the Italian summer shut down so there could be a delay in receiving your parts, we usually aim to dispatch your goods within 5-10 working days when available, please bear with us during this time.

Please note all prices, pack quantities and part numbers are subject to change without prior notice, Aprilia reserve the right to change price, pack quantities or part number - unfortunately we are unable to keep our website up-to-date with these changes from Aprilia however we do try our up most to keep in line with the current Aprilia catalogue

Back To Leonardo 125-150 1996-1998
bike me - aprilia

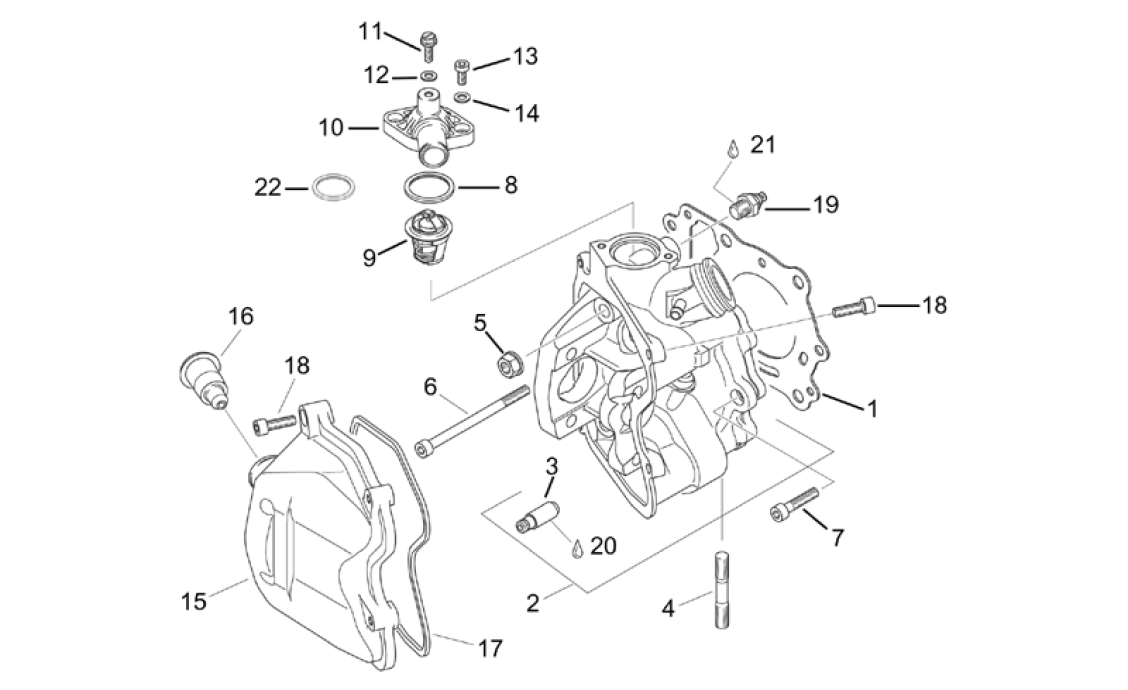

PositionPart NoBox QtyDescriptionPrice
1AP06501701Gasket Technical Specifications: Leonardo 125 [125] 18.57
1AP06501721Gasket Technical Specifications: Leonardo 150 [150] 18.57
2AP06131101Cylinder head assy. Year: 1997 [V], 1998 [W] 898.29
2AP02239881Cylinder head assy. Year: 1996 [T] 591.16
3AP02538114Valve guide126.61
4AP02403662Stud boltNo Longer Available
5AP08426164Nut M83.43
6AP02414812Hex socket screw M6x90No Longer Available
7AP08408809Hex socket screw M6x3011.68
8AP09278351Spacer 20,5x30 Technical Specifications: Leonardo 150 [150] 4.91
9AP02224901Thermostat 75 Technical Specifications: Leonardo 125 [125] No Longer Available
10AP02224701Thermostat cover21.65
12AP06502501Gasket 5,5/11/14.86
13AP02418412Hex socket screw3.16
14AP09275713Washer D140.88
15AP02115211Valves cover90.60
16AP02565001Oil separator9.11
17AP06502301Valve cover gasket16.89
18AP02419302Hex socket screw M6x202.20
19AP02654501Temperature gauge31.40
20AP02974331Molykote G-N 50gr.13.22
21AP08997841Loctite (orange) 57426.74
22AP06503001Thermostat gasket8.12
